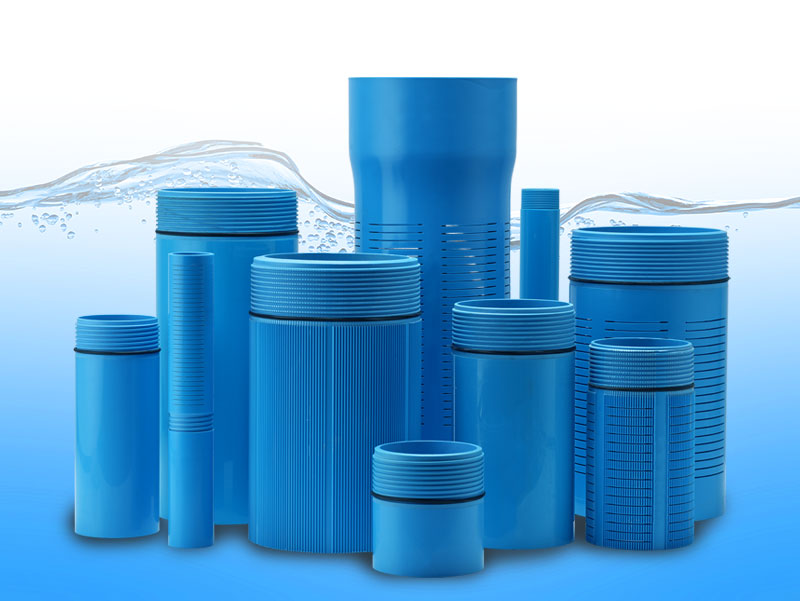

PVC Casing & Screen
|
Inch (ID) |
1” |
1 1/4" |
1 1/2" |
2" |
3" |
3.5" |
4" |
4 1/2" |
5" |
6" |
7" |
8" |
10" |
12" |
14" |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
'ecoline' Sizes (As Ordered) |
33 x 25 |
42 x 32 |
48 x 38 |
60 x 52 |
90 x 81 |
100 x 90 |
113 x 103 |
125 x 113 |
140 x 126 |
165 x 150 |
200 x 188 |
225 x 203 |
280 x 255 |
330 x 301 |
400 x 361 |
 |
|
Mean Outer Diameter (mm) - Minimum |
33,0 |
42,0 |
48,0 |
60,0 |
90,0 |
100,0 |
113,0 |
125,0 |
140,0 |
165,0 |
200,0 |
225,0 |
280,0 |
330,0 |
400,0 |
|
|
Mean Outer Diameter (mm) - Maximum |
33,2 |
42,2 |
48,2 |
60,2 |
90,3 |
100,3 |
113,3 |
125,3 |
140,4 |
165,4 |
200,5 |
225,5 |
280,5 |
330,6 |
400,7 |
|
|
Wall Thickness (mm) - Minimum |
4,00 |
5,00 |
5,00 |
4,00 |
4,50 |
5,00 |
5,00 |
6,00 |
7,00 |
7,50 |
6,00 |
11,00 |
12,50 |
14,50 |
19,50 |
|
|
Wall Thickness (mm) - Maximum |
4,20 |
5,30 |
5,30 |
4,30 |
4,80 |
5,50 |
5,50 |
6,50 |
7,50 |
8,00 |
6,50 |
11,50 |
13,00 |
15,00 |
20,50 |
|
|
Weight of Casing per meter (Kg) |
0,59 |
0,94 |
1,07 |
1,07 |
1,80 |
2,24 |
2,58 |
3,41 |
4,40 |
5,55 |
5,38 |
11,11 |
15,71 |
21,48 |
35,02 |
|
|

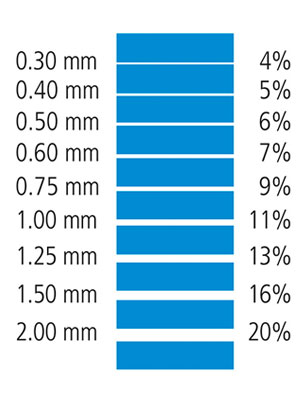

Minimum Possible Slot Width (mm) |
0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 | 0.75 | 1 | 1.5 | |
|
Maximum Possible Slot Width (mm) |
2,0 |
2,0 |
2,0 |
2,0 |
2,0 |
2,0 |
2,0 |
2,0 |
3,0 |
3,0 |
3,0 |
3,0 |
3,0 |
3,0 |
3,0 |
|
|
Number Of Rows Of Slots |
3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 5 | 6 | 6 & 8 | 6 | 6 | 8 | |
|
Thread Length (mm) |
25 | 25 | 25 | 35 | 40 | 40 | 40 | 40 | 60 | 60 | 60 | 70 | 80 | 90 | 90 | |
|

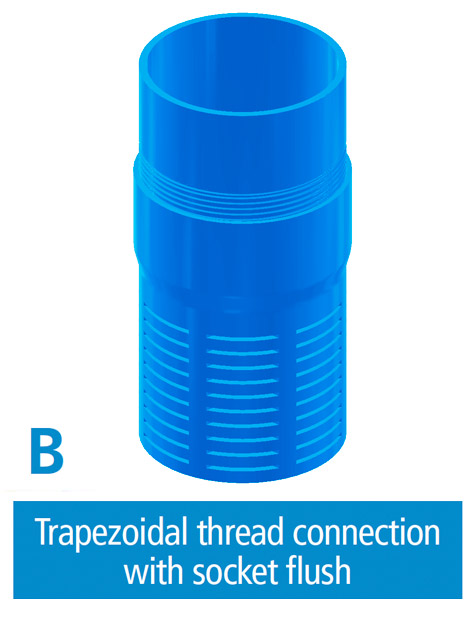

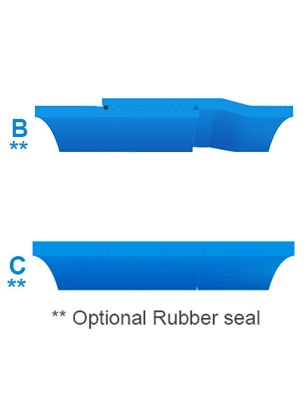

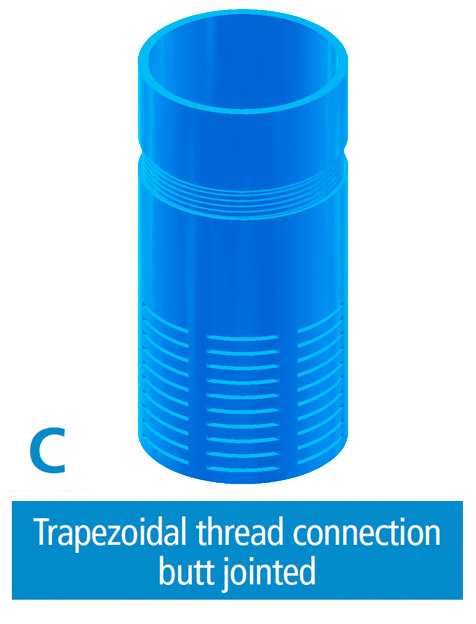

Max OD of B-Type Trapezoidal Female (mm) |
37 |
46 |
52 |
65 |
96 |
107 |
120 |
132 |
150 |
178 |
215 |
243 |
298 |
352 |
428 |
Scroll the table from right to left.

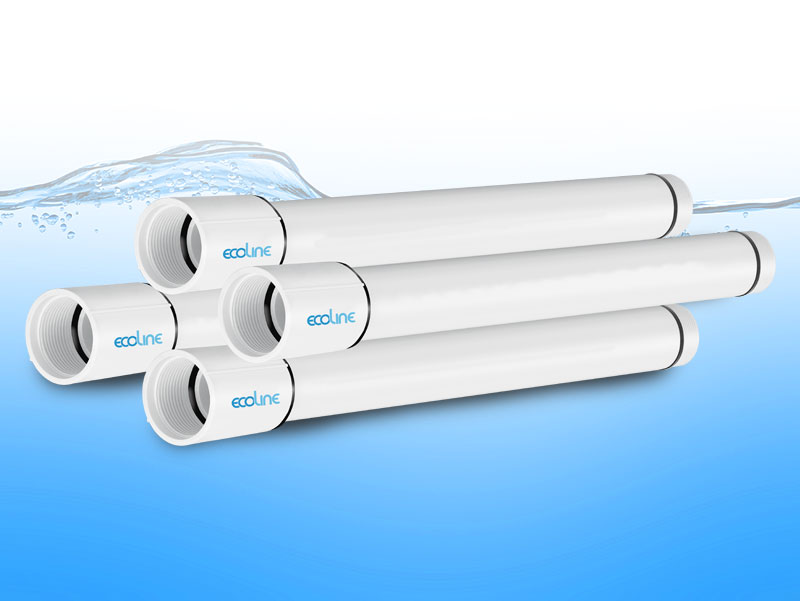

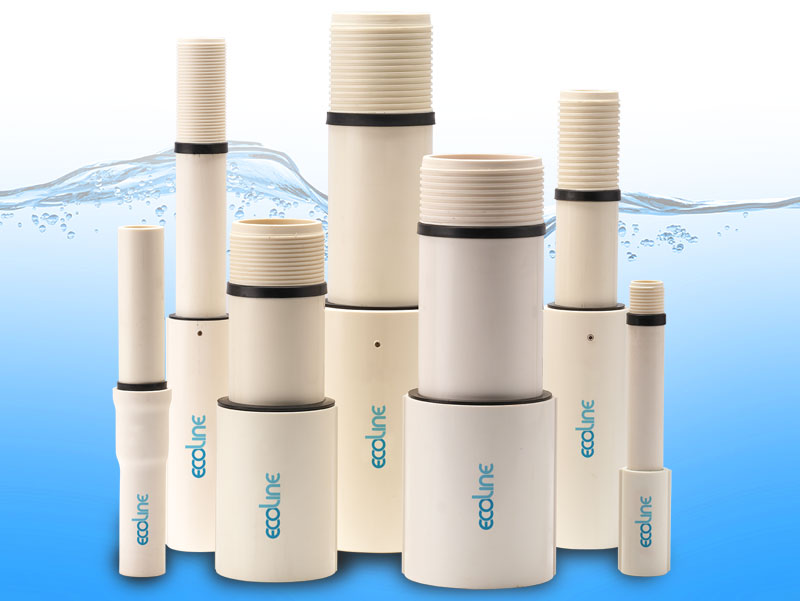

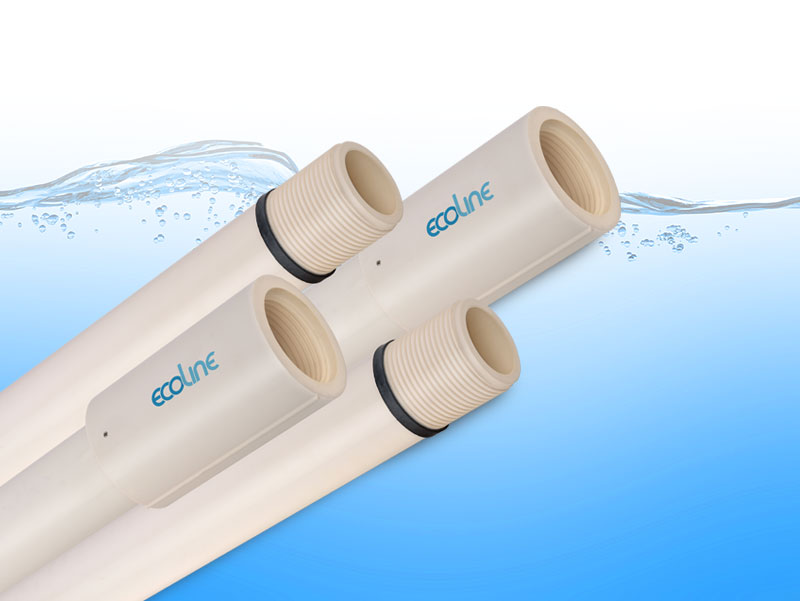

Bi-Axial PVC Riser Pipe
|
Inch |
1 1/4" |
1 1/2" |
2" |
3" |
4" |
5" |
6" |
|
|---|---|---|---|---|---|---|---|---|
|
Outside x Inside diameter (mm) |
42 x 32 |
48 x 37 |
60 x 47 |
88 x 68 |
113 x 89 |
141 x 111 |
165 x 132 |
|
|
Nominal wall thickness (mm) |
5,0 |
5,2 |
6,4 |
9,9 |
12,0 |
15,0 |
16,5 |
|
|
PN Class |
26 |
26 |
21 |
27 |
27 |
27 |
27 |
|
|
Riser Class |
Standard |
Standard |
Standard |
Heavy Duty |
Heavy Duty |
Heavy Duty |
Heavy Duty |
|
|
Maximum Breaking Load (Kg) |
2650 |
3200 |
5098 |
10000 |
15980 |
17058 |
22000 |
|
|
Max Recommended Working Load (Kg) |
1400 |
1500 |
2700 |
6000 |
12000 |
16240 |
18050 |
|
|
Max Recommended Installation Depth (M) |
150 |
120 |
120 |
180 |
180 |
180 |
180 |
|
|
Weight (kg/m) |
0,70 |
0,86 |
1,24 |
2,77 |
4,66 |
6,08 |
11,28 |
|
|
OD Over Female Connection (mm) |
56 |
62,5 |
78,5 |
114 |
136 |
166 |
200 |
|
|
Internal O-Ring In Female Connection |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
|
|
Thread Length (mm) |
50 |
50 |
64 |
64 |
68 |
130 |
130 |
Scroll the table from right to left.
